Eco Smart 90°C

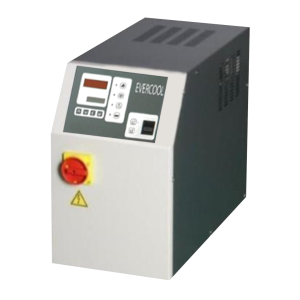

EVERCOOL MODEL TC90 Eco Smart Compact Water Circulating Temperature Control Unit

Specification

  • Heating Capacity: 3 / 6 / 9 kW
  • Maximum Operating Temperature: 90ºC
  • Heater Control: Solid State Relay
  • Cooling Capacity: 18,000 kcal/hr @90ºC
  • Tank Capacity: 8 or 12 litres – stainless steel
  • Pump Type: Submersible pump
  • Maximum Flow/Pressure: 60ltr/min @ 3.5 bar
  • Pump Power: 0.9kW
  • Electrical Supply: 400v – 3 ph – 50 Hz + E
  • Control Voltage: 24v AC
  • Process Connection IN/OUT: ¾” BSP
  • Cooling Connection IN/OUT: ¾” BSP



Features

PID controller

Submersible pump which eliminates internal seal leakage

Low watts density long life incoloy heating elements

Plate type heat exchanger for maximum heat dispersion

Magnetic water level sensor

Castors mounted for ease of transport

Automatic filling

Security thermostat for heater element protection



Browse our range of Water Circulating Temperature Control Units, Click on the below to view the specification.

MODEL TC90-3 Water Circulating Temperature Control Unit

MODEL TC90-6 Water Circulating Temperature Control Unit

MODEL TC90-9 Water Circulating Temperature Control Unit
